- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for THS8136IPHP
- Part Number THS8136IPHP
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X120-49N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
THS8136IPHP Details
-
Manufacturer Part Number:
THS8136IPHP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
48
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Texas Instruments
THS8136IPHP Frequently Asked Questions (FAQs)
-
A good PCB layout for the THS8136IPHP involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper biasing, make sure to connect the VCC pin to a stable 5V power supply, and the VEE pin to a stable -5V power supply. Also, ensure that the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
-
The THS8136IPHP can drive a maximum capacitive load of 100pF. Exceeding this limit may result in oscillations or instability.
-
To reduce noise and distortion, use a low-noise power supply, add decoupling capacitors close to the device, and use a shielded cable for the input signal. Additionally, consider adding a low-pass filter at the output to filter out high-frequency noise.
-
The recommended operating temperature range for the THS8136IPHP is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
System Verified
THS8136IPHP Overview

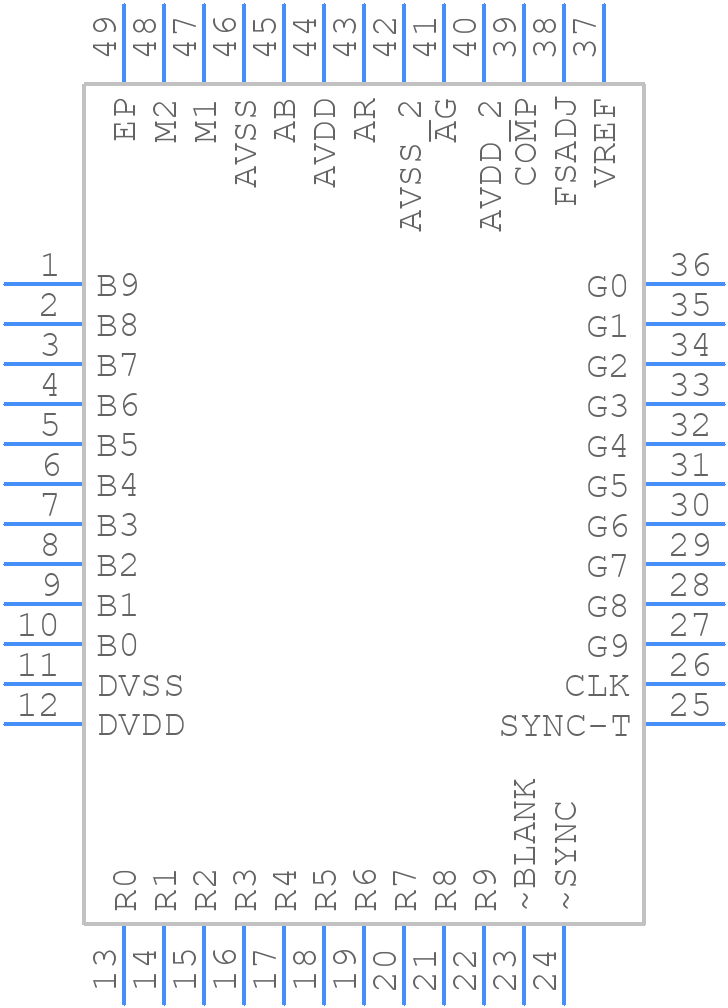

Use the download button to access the THS8136IPHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS81,
or try a keyword search, such as Digital to Analog Converters
