- Part Number THS8136PHP
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X120-49N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
THS8136PHP Details
-
Manufacturer Part Number:
THS8136PHP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
48
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Texas Instruments
THS8136PHP Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the THS8136PHP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The THS8136PHP is a flexible device that can be optimized for various video formats by adjusting the input and output termination, gain settings, and equalization. Consult the datasheet and application notes for specific guidance on optimizing the device for your desired video format.
-
The maximum cable length supported by the THS8136PHP depends on the specific video format, cable quality, and signal frequency. As a general guideline, the device can support cable lengths up to 30 meters for HDMI and 100 meters for SDI, but this may vary depending on the specific application.
-
To troubleshoot issues with the THS8136PHP, start by verifying the power supply and clocking configuration, then check the input and output signal quality using an oscilloscope or signal analyzer. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
Yes, the THS8136PHP is designed to work seamlessly with other Texas Instruments video processing devices, such as the THS8200 and THS7303. Consult the datasheet and application notes for specific guidance on integrating the THS8136PHP with other TI devices.
Trust Checks
System Verified
THS8136PHP Overview

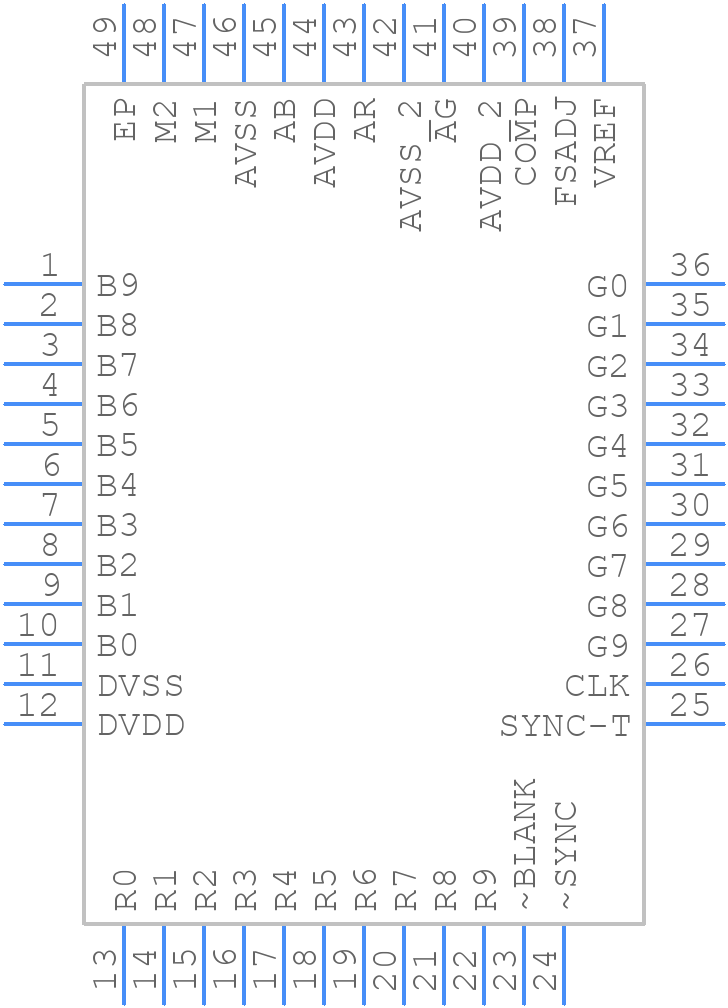

Use the download button to access the THS8136PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS81,
or try a keyword search, such as Digital to Analog Converters
