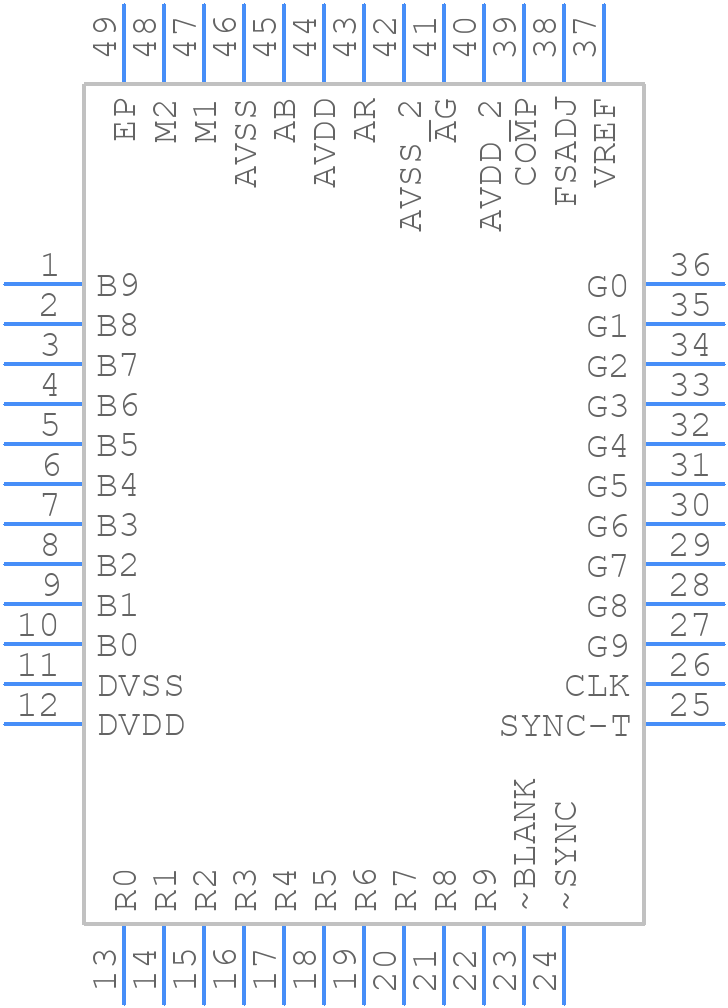

THS8136IPHPR - Texas Instruments

THS8136IPHPR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the THS8136?
  Texas Instruments provides a recommended PCB layout in the THS8136 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
• How do I select the correct gain setting for my application?
  The gain setting depends on the input signal amplitude and the desired output signal amplitude. The THS8136 datasheet provides a gain selection table to help determine the correct gain setting based on the input signal amplitude. Additionally, the THS8136 evaluation module documentation provides more detailed information on gain selection and optimization.
• What is the maximum input signal amplitude that the THS8136 can handle?
  The THS8136 can handle input signal amplitudes up to 2 Vpp differential, but the maximum input signal amplitude depends on the gain setting and the output voltage swing. The THS8136 datasheet provides more detailed information on input signal amplitude limitations.
• How do I filter out noise and interference in my application?
  The THS8136 has built-in filters to reduce noise and interference, but additional filtering may be necessary depending on the application. Texas Instruments recommends using external filters, such as RC filters or ferrite beads, to further reduce noise and interference. The THS8136 evaluation module documentation provides more information on filtering and noise reduction techniques.
• What is the power consumption of the THS8136, and how can I reduce it?
  The power consumption of the THS8136 depends on the supply voltage, operating frequency, and gain setting. The THS8136 datasheet provides power consumption specifications. To reduce power consumption, consider using a lower supply voltage, reducing the operating frequency, or using the THS8136's power-down mode.
