Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the differential signals.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider the thermal design and heat dissipation of the system, as the device can operate up to 125°C.
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at 1 Gbps and 5 meters at 3 Gbps, but it's recommended to consult the datasheet and perform signal integrity simulations for specific use cases.
To troubleshoot issues, start by consulting the datasheet and application notes. Use oscilloscopes and signal analyzers to verify signal integrity and check for common issues like impedance mismatches, signal reflections, or power supply noise. If the problem persists, contact Texas Instruments support or a qualified engineer for further assistance.
Yes, the THVD4411RGER is a high-frequency device, and EMI/EMC considerations are crucial. Ensure proper shielding, use EMI filters, and follow good PCB design practices to minimize radiation and susceptibility. Consult the datasheet and relevant industry standards for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THVD4411RGER Overview

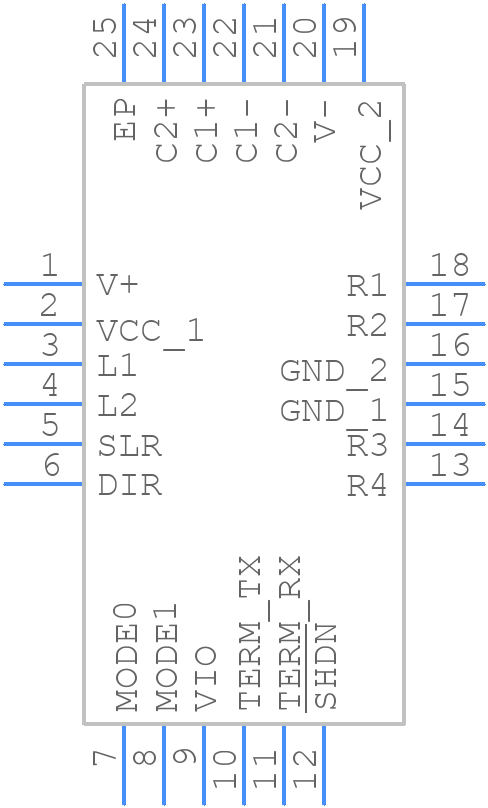

Use the download button to access the THVD4411RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THVD4,
or try a keyword search, such as Line Driver or Receivers
