Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Also, consider the device's thermal characteristics, such as junction temperature and thermal resistance, to prevent overheating.
Operating the THVD4421RHBR outside the recommended voltage range may affect its performance, reliability, and power consumption. Lower voltages may reduce the device's speed and increase power consumption, while higher voltages may increase the risk of damage or overheating.
To troubleshoot issues, start by verifying the power supply and input signals. Check for proper PCB layout, decoupling, and termination. Use oscilloscopes or logic analyzers to monitor the input and output signals. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
The THVD4421RHBR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification and testing. Consult with Texas Instruments or a qualified reliability engineer to determine the device's suitability for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THVD4421RHBR Overview

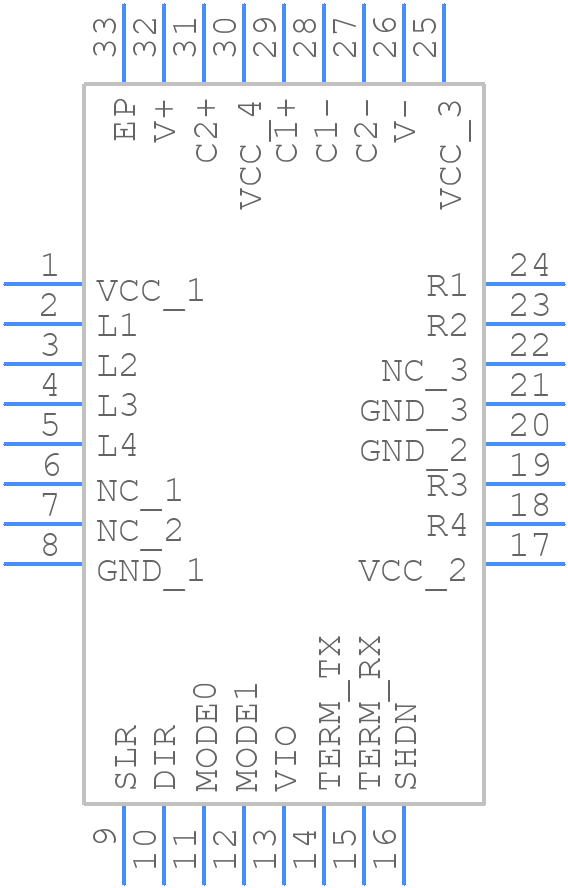

Use the download button to access the THVD4421RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THVD4,
or try a keyword search, such as Line Driver or Receivers
