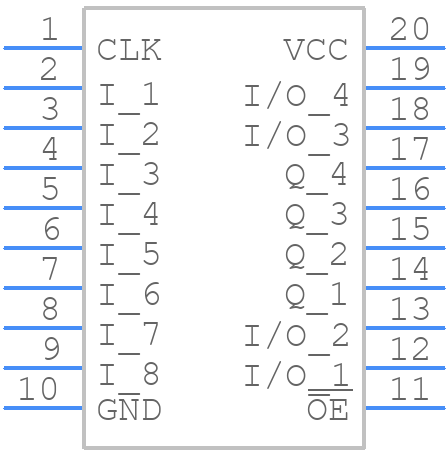

TIBPAL16R4-25CN - Texas Instruments

TIBPAL16R4-25CN Details

• Manufacturer Part Number:

  TIBPAL16R4-25CN

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  ROHS COMPLIANT, PLASTIC, MS-001AD, DIP-20

• Pin Count:

  20

• HTS Code:

  8542.31.00.55

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  POWER-UP RESET

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  30 MHz

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e4

• Length:

  25.4 mm

• Number of Dedicated Inputs:

  8

• Number of I/O Lines:

  4

• Number of Inputs:

  12

• Number of Outputs:

  8

• Number of Product Terms:

  64

• Number of Terminals:

  20

• Operating Temperature-Max:

  75 °C

• Organization:

  8 DEDICATED INPUTS, 4 I/O

• Output Function:

  MIXED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Programmable Logic Type:

  OT PLD

• Propagation Delay:

  25 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
