A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
To ensure signal integrity, use controlled impedance traces, add series termination resistors, and use a signal return path close to the signal trace. Also, minimize vias and use a solid ground plane to reduce signal reflections.
The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the input signals. This ensures that the internal voltage regulators are powered up correctly and prevents damage to the device.
The thermal shutdown feature is enabled by default. If the device temperature exceeds 150°C, it will shut down. To handle this, implement a thermal monitoring system to detect overheating and take corrective action, such as reducing power consumption or shutting down the system.
To minimize EMI and RFI emissions, use a shielded enclosure, keep signal traces short, and use a common mode choke or ferrite bead on the power supply lines. Also, ensure that the device is placed away from other noise-sensitive components.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TIBPAL20L8-15CNT Overview

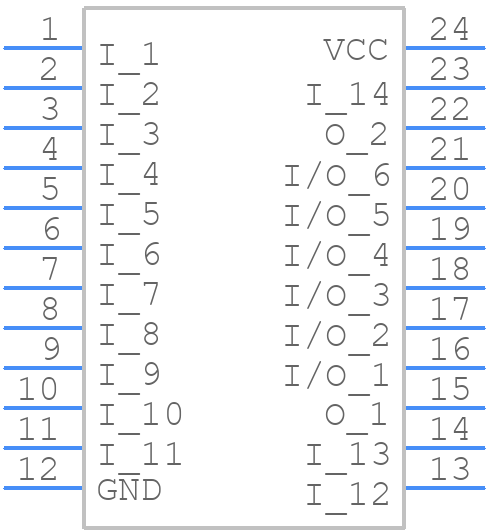

Use the download button to access the TIBPAL20L8-15CNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIBPA,
or try a keyword search, such as Programmable Logic Devices
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
