A good PCB layout for the TIOL1113DMWR involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TIOL1113DMWR requires a single 3.3V or 5V power supply. Ensure that the power supply is stable and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has reached its nominal value.
The maximum current rating of the TIOL1113DMWR is 1A. To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
Choose input and output capacitors with a low equivalent series resistance (ESR) and a high ripple current rating. A 10uF to 22uF ceramic capacitor is recommended for the input, and a 10uF to 47uF ceramic capacitor is recommended for the output.
The TIOL1113DMWR has a thermal pad that should be connected to a solid ground plane for heat dissipation. To calculate the junction temperature, use the formula: Tj = Ta + (Pd x θja), where Ta is the ambient temperature, Pd is the power dissipation, and θja is the junction-to-ambient thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TIOL1113DMWR Overview

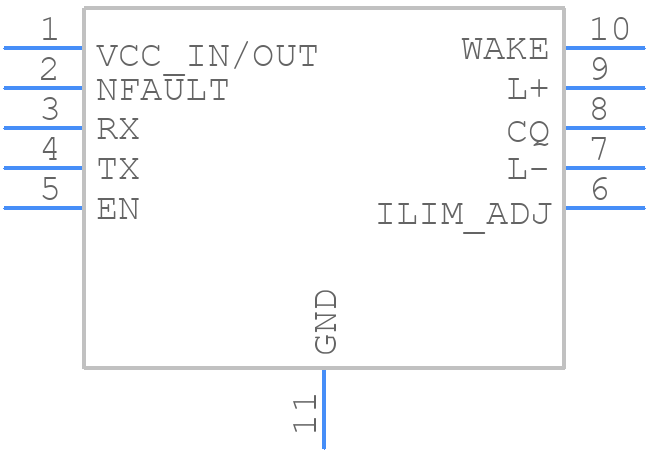

Use the download button to access the TIOL1113DMWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOL1,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
