TL1431QDR - Texas Instruments

Description: Precision adjustable (programmable) shunt reference

Download TL1431QDR Model

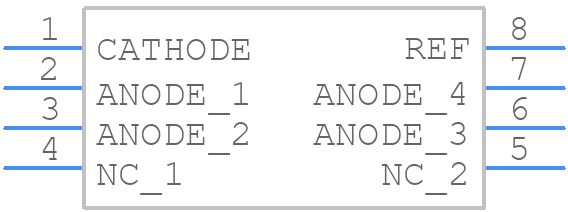

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TL1431QDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TL1431QDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

TL1431QDR Details

  • Manufacturer Part Number:

    TL1431QDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUT VOLTAGE ADJUSTABLE FROM 2.5V TO 36V

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    100 mA

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    114 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.4%

  • Width:

    3.9 mm

TL1431QDR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TL1431QDR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
  • To ensure the TL1431QDR operates within its safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage does not exceed the recommended maximum rating. Also, ensure the output current is within the specified range to prevent overheating.
  • The recommended input capacitor value for the TL1431QDR is 10uF to 22uF, with a voltage rating of at least 10V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize voltage ripple and ensure stable operation.
  • To troubleshoot issues with the TL1431QDR, start by checking the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the input voltage is within the recommended range and the output voltage is within the specified tolerance. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Also, ensure the device is properly soldered and the PCB layout is correct.
  • Yes, the TL1431QDR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates reliably in these applications.
