Texas Instruments provides a recommended PCB layout in the TL7700 datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The choice of input and output capacitors depends on the specific application requirements, such as output voltage, output current, and ripple rejection. Texas Instruments recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides more detailed guidance on capacitor selection.
The TL7700CMPWTPSEP is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It is essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Yes, the TL7700CMPWTPSEP is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it is essential to follow proper design and manufacturing guidelines to ensure the device meets the specific application requirements.
Texas Instruments provides a troubleshooting guide in the TL7700 datasheet, which covers common issues and their possible causes. Additionally, the TI E2E community forum and application notes provide valuable resources for troubleshooting and design optimization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TL7700CMPWTPSEP Overview

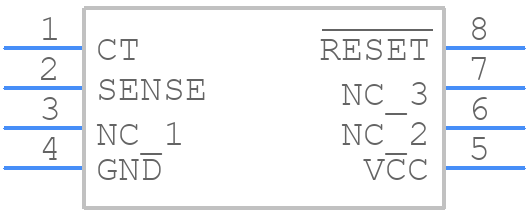

Use the download button to access the TL7700CMPWTPSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL770,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
