TL7700CPWG4 - Texas Instruments

Description: Supply Voltage Supervisory 0.49V to 0.51V 8-Pin TSSOP Tube

Download TL7700CPWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

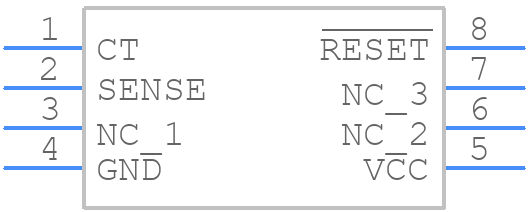

TL7700CPWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7700CPWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G8)
click to zoom
3D Models
TL7700CPWG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G8)
click to zoom

TL7700CPWG4 Details

  • Manufacturer Part Number:

    TL7700CPWG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    POWER ON RESET GENERATOR

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TL7700CPWG4 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TL7700CPWG4 involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended layout and placement guidelines, use a suitable output capacitor with a low ESR, and add a compensation capacitor (Ccomp) between the COMP pin and GND. The value of Ccomp depends on the output capacitor and the desired stability margin.
  • The TL7700CPWG4 has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure reliable operation and to prevent damage to the device.
  • The TL7700CPWG4 has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended thermal design guidelines and to ensure proper heat sinking to maintain a safe operating temperature.
  • The output voltage of the TL7700CPWG4 can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (2.5V), R1 is the resistance between the OUT pin and the ADJ pin, and R2 is the resistance between the ADJ pin and GND.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL7700CPWG4 Overview

Use the download button to access the TL7700CPWG4 schematic symbol, PCB footprint, and 3D model.
