TL7770-5IDWR - Texas Instruments

Description: IC SUPERVISOR 2 CHANNEL 16SOIC

Download TL7770-5IDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

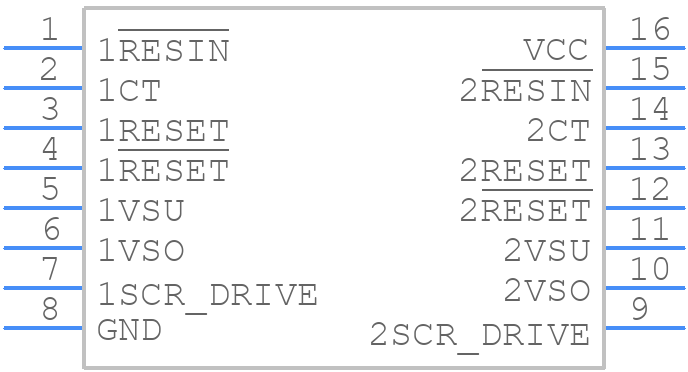

TL7770-5IDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7770-5IDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
TL7770-5IDWR - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

TL7770-5IDWR Details

  • Manufacturer Part Number:

    TL7770-5IDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    POWER ON RESET GENERATOR

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.55V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TL7770-5IDWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the TL7770-5IDWR placed close to the power source, using a star-ground configuration, and keeping the input and output traces separate to minimize noise and ensure stability.
  • The output capacitor value and type depend on the specific application and output voltage. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. Consult the datasheet and application notes for more specific guidance.
  • The TL7770-5IDWR has an absolute maximum input voltage rating of 18V. Exceeding this voltage can cause permanent damage to the device. Ensure that the input voltage is within the recommended operating range of 7V to 15V.
  • The TL7770-5IDWR has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for thermal management guidelines and derating information.
  • Proper thermal management involves providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Consult the datasheet and application notes for specific thermal management guidelines and recommendations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL7770-5IDWR Overview

Use the download button to access the TL7770-5IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL777, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
