- Part Number TL851CN
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TL851CN
- Released Date Apr 27, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TL851CN Details
-
Manufacturer Part Number:
TL851CN
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
TL851CN Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TL851CN is 4.5V to 16V, although it can operate up to 18V with reduced performance.
-
To ensure stable and accurate output voltage, it's essential to use a stable input voltage, decouple the input and output pins with capacitors, and use a low-ESR output capacitor.
-
The TL851CN can deliver up to 1A of output current, but it's recommended to limit the output current to 500mA for optimal performance and reliability.
-
The output voltage of the TL851CN can be adjusted by using a resistive divider network between the output pin and the adjust pin, with the adjust pin connected to the ground through a resistor.
-
The TL851CN has an operating junction temperature range of -40°C to 125°C, making it suitable for high-temperature applications, but it's essential to ensure proper thermal management and derating.
Trust Checks
Community Provided
System Verified
Community Approved
TL851CN Overview

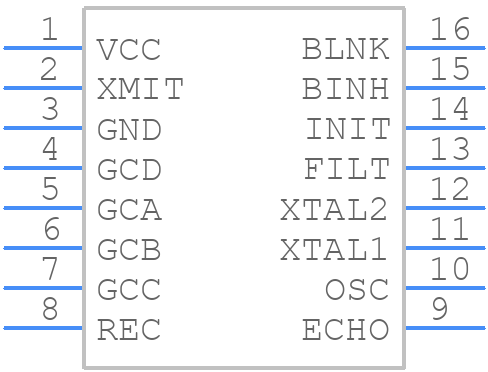

Use the download button to access the TL851CN schematic symbol, PCB footprint, and 3D model.
