TLA2528IRTER - Texas Instruments

Description: Analog to Digital Converters - ADC Small 8-channel 12-bit analog-to-digital converter (ADC) with I2C interface and GPIOs 16-WQFN -40 to 85

Download TLA2528IRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

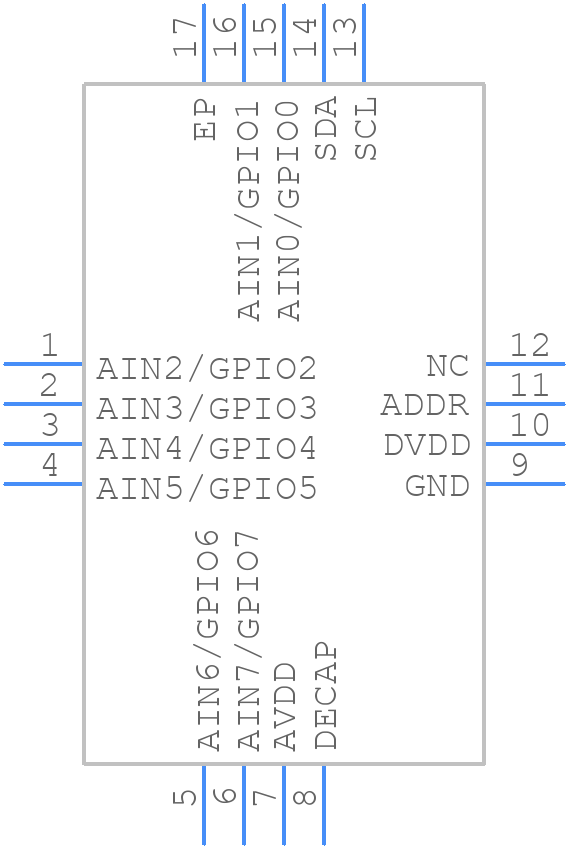

TLA2528IRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLA2528IRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TLA2528IRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TLA2528IRTER Details

  • Manufacturer Part Number:

    TLA2528IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2019-06-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    1 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.012207%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.14 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.195 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLA2528IRTER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLA2528IRTER involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
  • The gain setting for the TLA2528IRTER depends on the specific application and the desired signal-to-noise ratio (SNR). A higher gain setting can provide a higher SNR, but may also increase the risk of amplifier saturation. A good starting point is to use the recommended gain setting in the datasheet and adjust as needed based on the specific application requirements.
  • The maximum input voltage that the TLA2528IRTER can handle is ±5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use input voltage limiting resistors or clamping diodes to protect the device from overvoltage conditions.
  • The TLA2528IRTER is specified to operate from -40°C to 125°C. To ensure that the device operates within this range, it's recommended to use a heat sink or a thermally conductive material to dissipate heat, and to avoid operating the device in high-temperature environments.
  • The recommended power-up sequence for the TLA2528IRTER is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to ensure that the device powers up correctly and minimizes the risk of latch-up or other power-up related issues.
