The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
The TLC0832CDR outputs data in a serial format, with the most significant bit (MSB) first. The output data is also binary-coded decimal (BCD) format, where each digit is represented by a 4-bit binary code.
The VREF pin is used to set the reference voltage for the analog-to-digital conversion. The VREF voltage determines the full-scale range of the ADC, and it should be set to a voltage that is within the specified range (typically 2.5V to 5V).
To ensure accurate conversions, it is essential to provide a stable and noise-free power supply, use a high-quality analog input signal, and ensure that the VREF pin is properly set. Additionally, the device should be operated within the specified temperature range and with the recommended capacitive loading on the output pins.
Yes, the TLC0832CDR can be used in a multiplexed configuration, where multiple analog input channels are connected to the device through an analog multiplexer. However, the multiplexer should be designed to minimize signal degradation and ensure that the analog input signal is not distorted.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC0832CDR Overview

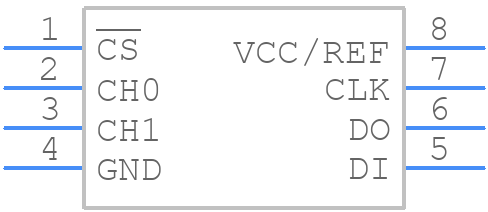

Use the download button to access the TLC0832CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC08,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
