The maximum clock frequency for TLC1543IFN is 3.6 MHz. However, it's recommended to use a clock frequency of 2.5 MHz or less to ensure reliable operation.
The TLC1543IFN has a built-in POR circuit that resets the device when the power supply voltage (VCC) rises above 1.5V. To handle POR, ensure that the VCC ramp-up time is slower than 10 ms/V to prevent false triggering.
To minimize noise and ensure reliable operation, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces short and away from digital traces. Also, use a bypass capacitor (e.g., 0.1 μF) between VCC and GND, and a decoupling capacitor (e.g., 10 μF) between VREF and GND.
Calibration involves adjusting the internal reference voltage (VREF) and the analog-to-digital converter (ADC) offset. Use the CAL pin to adjust VREF, and the OFS pin to adjust the ADC offset. Refer to the datasheet for specific calibration procedures.
The maximum input voltage range for TLC1543IFN is 0V to VCC. To handle overvoltage protection, use external resistors and diodes to limit the input voltage to within the specified range. Additionally, consider using a voltage clamp or a protection IC to prevent damage from overvoltage conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC1543IFN Overview

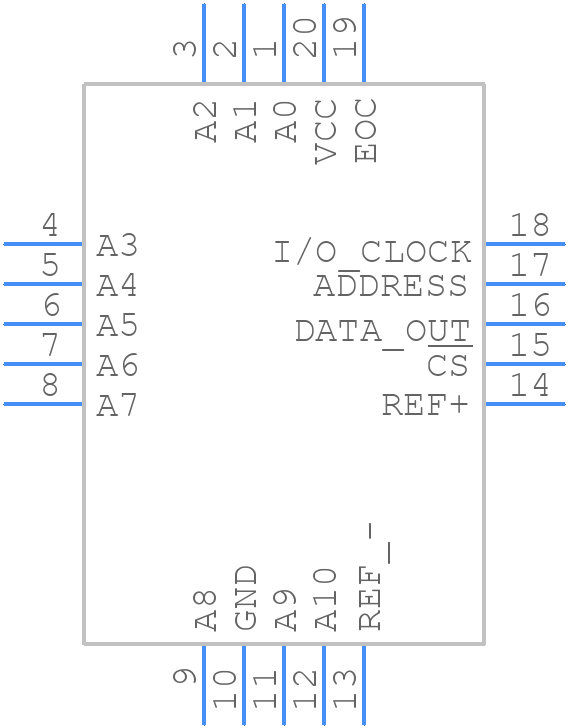

Use the download button to access the TLC1543IFN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC15,
or try a keyword search, such as Analog to Digital Converters
