The recommended layout and routing for the TLC3541ID involves keeping the analog and digital grounds separate, using a star-ground configuration, and minimizing the length of the analog signal traces. It's also important to keep the power supply decoupling capacitors close to the device.
To optimize the TLC3541ID's performance for low-noise applications, use a low-noise power supply, minimize the input capacitance, and use a high-impedance input source. Additionally, consider using a guard ring around the input pins to reduce noise coupling.
The TLC3541ID can handle clock frequencies up to 40 MHz, but the maximum frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
To ensure the TLC3541ID's accuracy and linearity in high-temperature applications, use a thermally stable voltage reference, minimize thermal gradients, and consider using a temperature compensation circuit. Additionally, consult the datasheet and application notes for temperature-related specifications and guidelines.
Key considerations for EMI and RFI mitigation when using the TLC3541ID include using a shielded enclosure, minimizing loop areas, and using EMI filters or chokes on the input and output lines. Additionally, consider using a common-mode choke to reduce electromagnetic radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3541ID Overview

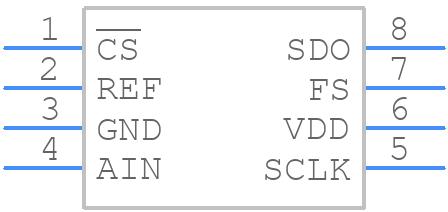

Use the download button to access the TLC3541ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
