Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
To prevent EMI, it is recommended to use a series termination resistor (e.g. 22-33 ohms) at the output of the TLC3541IDGK, and to keep the digital output traces short and away from sensitive analog circuits. Additionally, using a low-inductance capacitor (e.g. 10nF) between the digital output and ground can help to filter out high-frequency noise.
The TLC3541IDGK can operate at clock frequencies up to 40MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It is recommended to consult the datasheet and application notes for more information on clock frequency limitations.
The TLC3541IDGK requires a single 5V power supply, and it is recommended to use a low-dropout linear regulator (LDO) to power the device. Decoupling capacitors (e.g. 10uF and 100nF) should be placed close to the device's power pins, and the power supply should be filtered to prevent noise and ripple from affecting the device's performance.
The TLC3541IDGK can be interfaced with a microcontroller or FPGA using a standard SPI or QSPI interface. The device's digital outputs can be connected directly to the microcontroller or FPGA's digital inputs, and the device's control inputs (e.g. CS, SCLK, SDI) can be connected to the microcontroller or FPGA's digital outputs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3541IDGK Overview

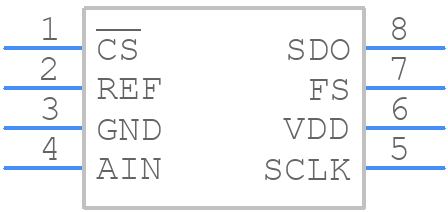

Use the download button to access the TLC3541IDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
