Texas Instruments provides a recommended layout and routing guide in the TLC3541IDGKR datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns near the device.
The TLC3541IDGKR requires a high-speed clock input, which can be challenging to handle. It's recommended to use a clock buffer or a dedicated clock generator to ensure a clean and stable clock signal, and to terminate the clock input with a series resistor to prevent reflections.
The TLC3541IDGKR can operate up to 200 MSPS, but the actual maximum operating frequency depends on the specific application, PCB layout, and clock quality. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific design.
Proper power supply decoupling is critical for the TLC3541IDGKR. It's recommended to use a combination of bulk capacitors, ceramic capacitors, and bypass capacitors to filter out noise and ensure a stable power supply. The decoupling capacitors should be placed as close as possible to the device pins.
The TLC3541IDGKR's analog inputs require proper termination to prevent signal reflections and ensure accurate signal acquisition. A recommended termination scheme is to use a series resistor and a shunt capacitor to match the input impedance to the signal source impedance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3541IDGKR Overview

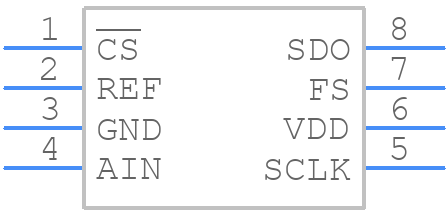

Use the download button to access the TLC3541IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
