Texas Instruments provides a recommended layout and routing guide in the TLC3545ID datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns near the device.
To handle the high-speed digital inputs and outputs of the TLC3545ID, use series termination resistors, and consider using a transmission line or a controlled impedance PCB to minimize signal reflections and ringing. Also, ensure that the input and output signals are properly terminated and matched to the device's impedance.
The TLC3545ID can handle clock frequencies up to 200 MHz, but the actual maximum frequency depends on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to ensure reliable operation at high frequencies.
To ensure reliable operation of the TLC3545ID in high-temperature environments, follow the recommended operating conditions and thermal management guidelines in the datasheet. Use a heat sink or thermal pad to dissipate heat, and consider using a thermally-enhanced package or a device with a higher temperature rating if necessary.
The TLC3545ID requires a specific power sequencing to ensure proper operation. The recommended power sequencing is to power up the analog supply (VCCA) before the digital supply (VCCD), and to power down the digital supply before the analog supply. This ensures that the device's internal circuitry is properly initialized and avoids potential latch-up or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3545ID Overview

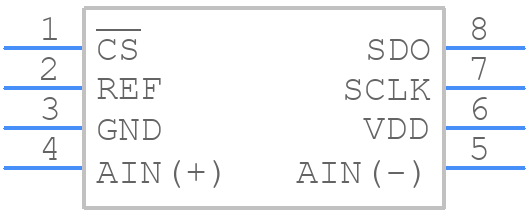

Use the download button to access the TLC3545ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
