Texas Instruments provides a recommended layout and routing guide in their application note SLVAE03, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
To handle high-speed digital inputs, it's recommended to use a series resistor (e.g., 22-47 ohms) and a capacitor (e.g., 10-22 pF) to filter out noise and ringing. Additionally, ensure that the input signals are properly terminated and that the PCB layout is designed to minimize signal reflections.
While the datasheet specifies a maximum clock frequency of 40 MHz, the TLC3548CDWR can actually handle higher clock frequencies with proper design and layout. However, it's recommended to consult with Texas Instruments' application engineers or perform thorough testing to ensure reliable operation at higher frequencies.
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 10-22 uF) placed close to the device, and consider adding a 10-100 nF capacitor in parallel to filter out high-frequency noise. Additionally, ensure that the power supply is stable and well-regulated, and that the device is operated within its recommended operating conditions.
The TLC3548CDWR can be programmed using a variety of methods, including JTAG, SPI, or I2C. Texas Instruments provides a programming guide and software tools, such as the TINA-TI Spice Simulator, to facilitate programming and configuration of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3548CDWR Overview

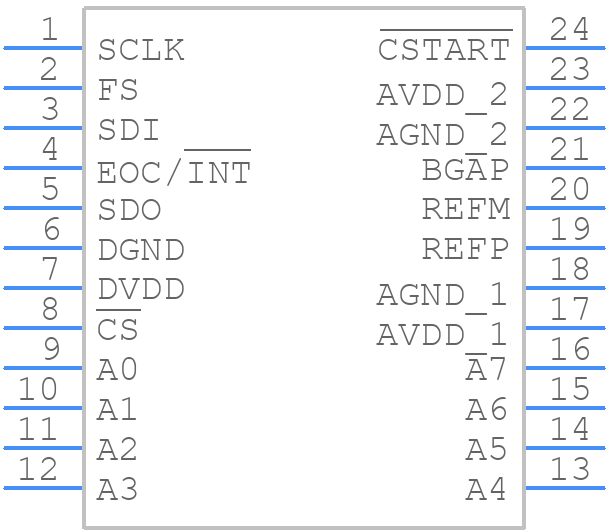

Use the download button to access the TLC3548CDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
