TLC3548IDW - Texas Instruments

Description: 14-bit, 5V, 200KSPS, 8-Channel Unipolar ADC

Download TLC3548IDW Model

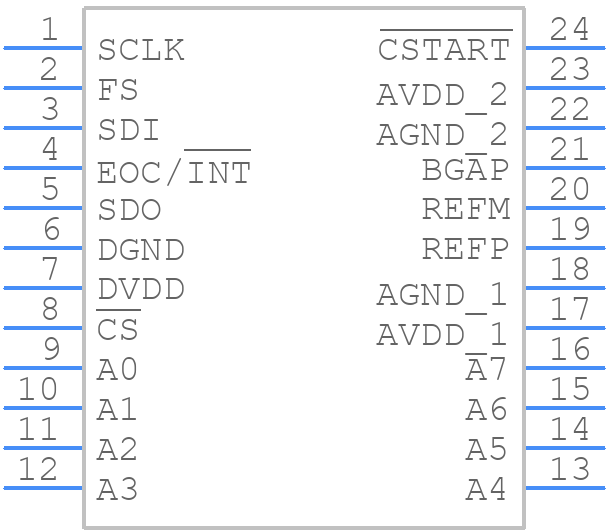

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC3548IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
TLC3548IDW - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

TLC3548IDW Details

  • Manufacturer Part Number:

    TLC3548IDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    4.5 V

  • Conversion Time-Max:

    2.785 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLC3548IDW Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the TLC3548IDW involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a solid ground plane and a separate analog power plane can help minimize noise and ensure optimal performance.
  • To handle the TLC3548IDW's high-speed clock input, use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. Ensure the clock signal is properly terminated, and use a clock buffer or repeater if necessary. Also, keep the clock signal path as short as possible and avoid running it near noisy signals or power planes.
  • When selecting external components for the TLC3548IDW, consider the device's operating frequency, signal amplitude, and impedance. Choose resistors with low tolerance and temperature coefficient, and capacitors with low equivalent series resistance (ESR) and high reliability. Also, ensure the components are rated for the operating voltage and temperature range of the application.
  • To optimize the TLC3548IDW's power supply and decoupling, use a low-noise, low-dropout regulator (LDO) or a switching regulator with a low output voltage ripple. Add decoupling capacitors with low ESR and high reliability, and place them close to the device's power pins. Also, use a power plane with a solid ground plane and a separate analog power plane to minimize noise and ensure reliable operation.
  • When using the TLC3548IDW, consider the device's power dissipation and thermal resistance. Ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Also, consider the PCB's thermal conductivity and use thermal vias to dissipate heat effectively. Finally, follow the recommended operating temperature range and avoid overheating the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC3548IDW Overview

Use the download button to access the TLC3548IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TLC3548IDW

Showing 0 results

TLC3548IDW Alternates

Showing results

Image Part Number Model
Part Image TLC3548CDWR Texas Instruments

ADC, Successive Approximation, 14-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO24

Part Image TLC3548CDW Texas Instruments

ADC, Successive Approximation, 14-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO24
