A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the input and output traces short and away from each other. Additionally, use a solid ground plane and avoid routing signals under the device.
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Add additional decoupling capacitors (e.g., 100nF ceramic) near the device's power pins. Ensure the power supply is clean and regulated, and use a low-dropout regulator if necessary.
The recommended input impedance is 1kΩ to 10kΩ, and the recommended output impedance is 1kΩ to 100kΩ. However, the optimal impedance values may vary depending on the specific application and signal frequencies.
Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to dissipate significant power. Keep the device away from other heat sources, and avoid blocking airflow to the device.
Common pitfalls include not following proper layout and routing guidelines, not providing adequate power supply decoupling, and not considering the device's thermal limitations. Additionally, not accounting for the device's input and output impedance, and not properly terminating the output signals can lead to poor performance or oscillations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3574IDWR Overview

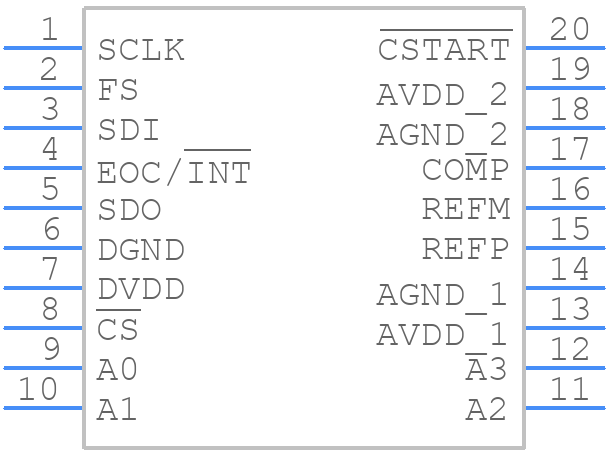

Use the download button to access the TLC3574IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
