A good layout and routing practice is to keep the analog and digital grounds separate, use a star-grounding configuration, and keep the input and output traces short and away from each other. Additionally, use a solid ground plane and avoid routing digital signals near the analog inputs.
Monitor the power supply voltage to ensure it is within the recommended range of 2.7V to 5.5V. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C. Use thermal management techniques such as heat sinks or thermal interfaces to prevent overheating.
Common pitfalls include not following proper layout and routing guidelines, not using adequate decoupling capacitors, and not ensuring the device is operated within its recommended operating conditions. To troubleshoot issues, use a systematic approach to identify the problem, check the datasheet and application notes, and use tools such as oscilloscopes and logic analyzers to debug the issue.
Optimize the TLC3578IDW's performance by selecting the appropriate gain and bandwidth settings, using proper filtering and signal conditioning, and ensuring the device is operated within its recommended operating conditions. Application-specific considerations include selecting the appropriate input and output impedance, ensuring electromagnetic compatibility, and meeting specific regulatory requirements.
Some common alternatives to the TLC3578IDW include the OPA357, OPA2357, and AD8605. These devices offer similar performance and features, but may have differences in terms of gain-bandwidth product, noise performance, and power consumption. Compare the datasheets and application notes to determine the best device for your specific application.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLC3578IDW Overview

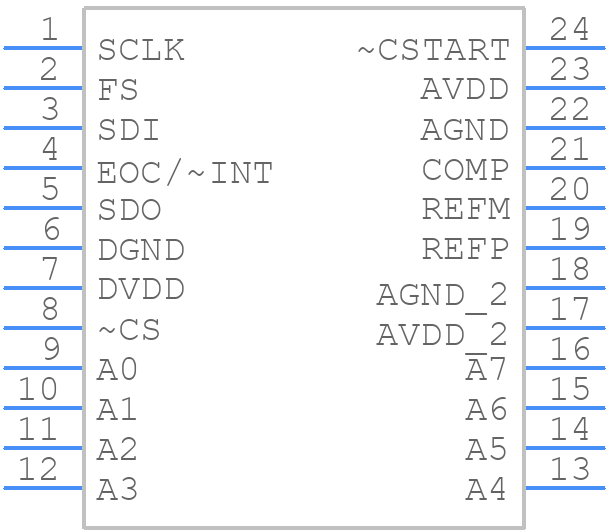

Use the download button to access the TLC3578IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
