TLC4541IDGKR - Texas Instruments

Description: Single Channel Single ADC SAR 200ksps 16-bit Serial 8-Pin VSSOP T/R

Download TLC4541IDGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

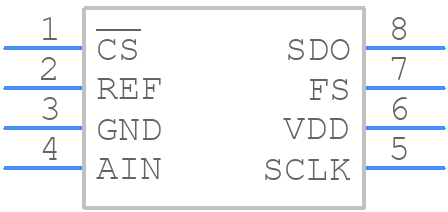

TLC4541IDGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC4541IDGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TLC4541IDGKR - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TLC4541IDGKR Details

  • Manufacturer Part Number:

    TLC4541IDGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    2.94 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLC4541IDGKR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from digital signals.
  • The POR and BOR features are enabled by default. To handle them, ensure that the power supply ramps up slowly (typically 10ms to 100ms) to allow the internal voltage regulator to stabilize. You can also use external circuitry to delay the reset signal to the microcontroller until the power supply is stable.
  • The recommended input voltage range for the TLC4541IDGKR is 0V to VCC-1.5V. Operating outside this range may affect the accuracy of the ADC. Ensure that the input voltage is within the specified range to maintain the specified accuracy and linearity.
  • Calibration is not required for the TLC4541IDGKR, as it is a self-calibrating ADC. However, you can perform a system-level calibration by measuring the ADC output and adjusting the gain and offset to match the desired output range.
  • The maximum sampling rate of the TLC4541IDGKR is 200ksps. Increasing the sampling rate will increase the power consumption. To minimize power consumption, use the lowest sampling rate required for your application.
