It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Ensure the device operates within the recommended voltage range (2.7V to 5.5V), temperature range (-40°C to 125°C), and power dissipation (PD) limits. Also, follow the recommended PCB layout and thermal management guidelines to prevent overheating.
Choose components with tight tolerances (e.g., 1% resistors) to ensure accurate voltage references. Select capacitors with low equivalent series resistance (ESR) and high capacitance to minimize noise and ensure stable operation.
Use an oscilloscope to check for oscillations or noise on the output. Verify the input voltage and current, and check for any layout or routing issues. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
In high-reliability or safety-critical applications, ensure the TLC4545ID is used within its recommended operating conditions and follows relevant industry standards (e.g., IEC 61508, ISO 26262). Implement redundant or fail-safe designs, and consider using additional safety features, such as watchdog timers or error detection circuits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC4545ID Overview

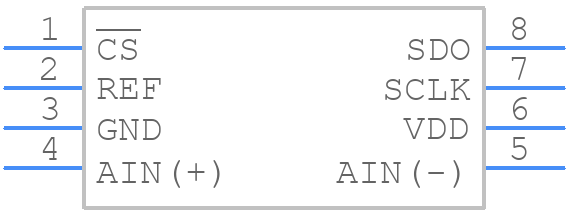

Use the download button to access the TLC4545ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC45,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
