Texas Instruments recommends a star-ground connection, with the analog and digital grounds separated and connected at a single point. Keep the analog and digital signal traces separate, and use a solid ground plane to reduce noise. Additionally, place the device close to the analog signal sources and use short, direct connections to minimize parasitic inductance.
To mitigate oscillation, ensure that the input impedance is matched to the source impedance, and use a low-pass filter or a ferrite bead to reduce high-frequency noise. Additionally, consider adding a small capacitor (e.g., 10pF) between the input pins and ground to improve stability.
The TLC4545IDGK can operate with clock frequencies up to 50 MHz. However, the maximum clock frequency may be limited by the specific application, noise levels, and layout. It's essential to consult the datasheet and perform thorough testing to determine the optimal clock frequency for your design.
The TLC4545IDGK's internal registers can be programmed using a 3-wire serial interface (SCLK, SDIN, and SOUT). Consult the datasheet for the register map and programming sequence. You can also use Texas Instruments' software tools, such as the TLC4545 Evaluation Module, to simplify the programming process.
The TLC4545IDGK has a maximum junction temperature (TJ) of 150°C. Ensure good thermal dissipation by using a heat sink, thermal vias, or a thermally conductive PCB material. Keep the device away from heat sources, and consider using thermal simulation tools to optimize your design for reliable operation over temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC4545IDGK Overview

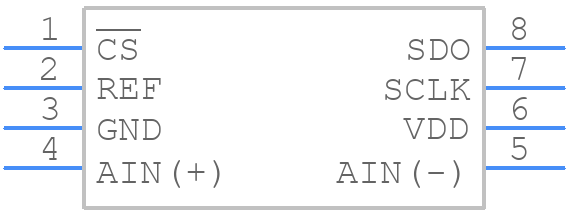

Use the download button to access the TLC4545IDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC45,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
