TLC541IN - Texas Instruments

Description: 8-Bit, 40 kSPS ADC Serial-Out, On-Chip 12-Ch. Analog Mux, 11 Ch.

Download TLC541IN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

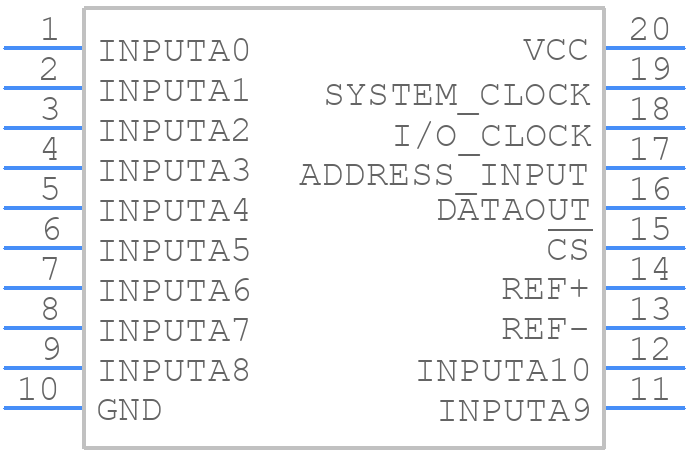

TLC541IN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC541IN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
TLC541IN - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

TLC541IN Details

  • Manufacturer Part Number:

    TLC541IN

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    17 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Number of Analog In Channels:

    11

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.04 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TLC541IN Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
  • To ensure accurate conversions, make sure to use a stable and noise-free power supply, decouple the power pins with capacitors, and use a low-noise analog input signal. Additionally, ensure that the reference voltage (VREF) is stable and within the recommended range.
  • The maximum clock frequency for the TLC541IN is 1.5 MHz. Exceeding this frequency may result in inaccurate conversions or device malfunction.
  • Yes, the TLC541IN can be used in a ratiometric configuration, where the reference voltage (VREF) is derived from the power supply voltage (VCC). This can simplify the design and reduce the number of external components required.
  • The TLC541IN has built-in overvoltage protection, but it's still important to ensure that the input voltage does not exceed the maximum rating of 6.5V. If an overvoltage condition is anticipated, consider adding external protection circuitry, such as a voltage clamp or a zener diode.
