The recommended power-on sequence is to apply VCC first, followed by VREF, and then the input signal. This ensures proper operation and prevents latch-up.
The TLC549CDG4 has a limited output current of 20mA. To handle this, use an external buffer or amplifier to drive heavy loads, or use a current-limiting resistor to prevent excessive current draw.
The TLC549CDG4's accuracy and linearity can be affected by temperature. The device's offset voltage and gain error can increase with temperature, so it's essential to consider temperature compensation or calibration in your design.
While the TLC549CDG4 is primarily an analog-to-digital converter, it can be used as a comparator in certain applications. However, its comparator functionality is limited, and it may not provide the same level of performance as a dedicated comparator IC.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using bypass capacitors, and shielding sensitive signals. Additionally, consider using a low-pass filter or a ferrite bead to reduce high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC549CDG4 Overview

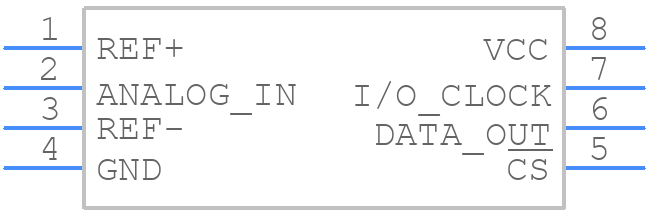

Use the download button to access the TLC549CDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC54,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
