TLC5510AINS - Texas Instruments

Description: Texas Instruments TLC5510AINS, 8 bit Video ADC 20Msps Parallel 5 V, 24-Pin SOP

Download TLC5510AINS Model

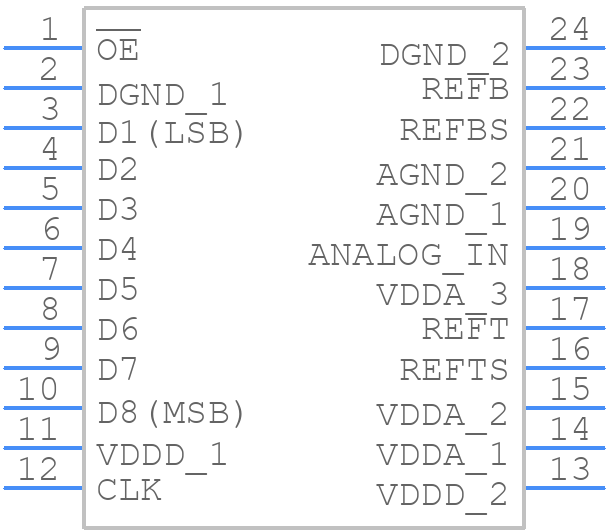

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

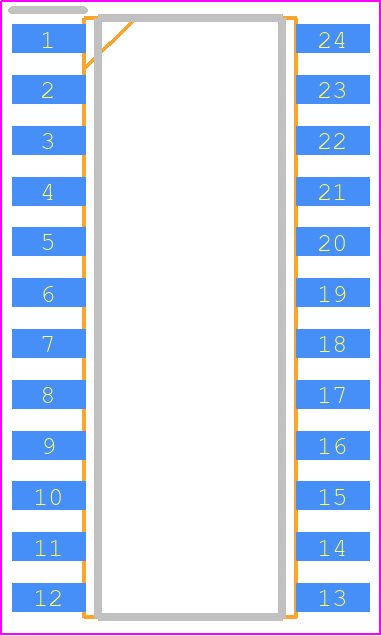

TLC5510AINS - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SO NC 24
click to zoom
3D Models
TLC5510AINS - Texas Instruments  - 3D model - Small Outline Packages - SO NC 24
click to zoom

TLC5510AINS Details

  • Manufacturer Part Number:

    TLC5510AINS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 4

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    -4 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TLC5510AINS Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the TLC5510AINS involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog power supply. Additionally, it's recommended to use a solid ground plane and to keep the input and output traces short and away from each other.
  • To ensure proper biasing and configuration, follow the recommended operating conditions and application circuits provided in the datasheet. Make sure to select the correct voltage reference, set the gain and offset correctly, and use the recommended component values for the external resistors and capacitors.
  • When using the TLC5510AINS in high-temperature or high-power applications, it's essential to consider thermal management. Ensure good airflow, use a heat sink if necessary, and follow the recommended thermal design guidelines. Also, be aware of the device's thermal shutdown and thermal protection features to prevent overheating.
  • To troubleshoot common issues with the TLC5510AINS, start by checking the power supply and ground connections. Ensure that the device is properly biased and configured, and that the input and output signals are within the recommended ranges. Use an oscilloscope to visualize the signals and identify any oscillations or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The TLC5510AINS, like any other electronic device, can be susceptible to radiation and EMI. To mitigate these effects, use proper shielding, filtering, and grounding techniques. Follow good PCB design practices, such as using a solid ground plane and minimizing trace lengths. Additionally, consider using radiation-hardened or EMI-resistant components and designs.
