TLC5510AINSR - Texas Instruments

Description: Analog to Digital Converters - ADC 8-Bit 20 MSPS 1-Ch Internal S&H Lo Pwr

Download TLC5510AINSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

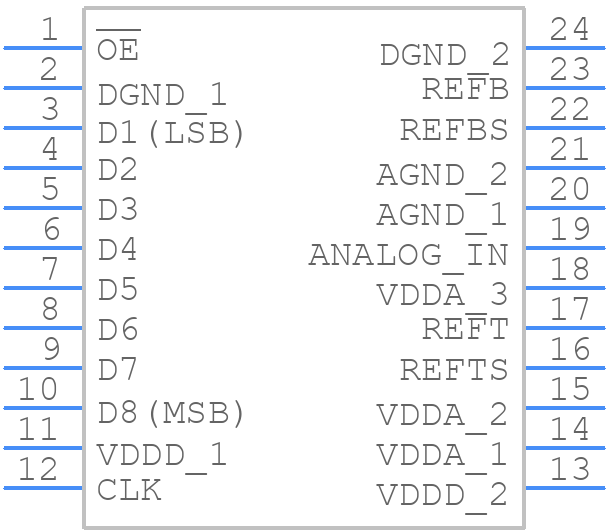

Symbol
TLC5510AINSR - Texas Instruments - PCB symbol
click to zoom

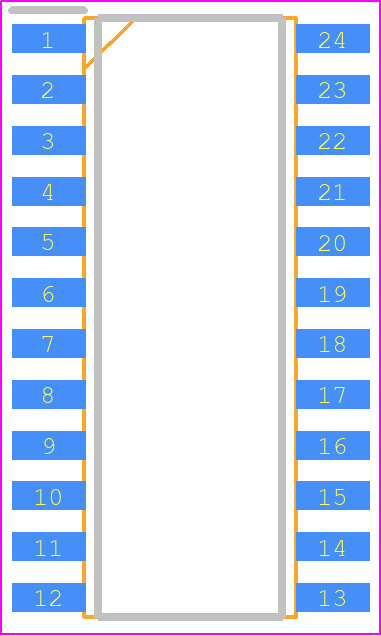

PCB Footprints
TLC5510AINSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G24)
click to zoom
3D Models
TLC5510AINSR - Texas Instruments - 3D model - Small Outline Packages - NS (R-PDSO-G24)
click to zoom

TLC5510AINSR Details

  • Manufacturer Part Number:

    TLC5510AINSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 4

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    -4 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TLC5510AINSR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input and output traces should be as short as possible and shielded from noise sources. A good layout and routing can help reduce noise and improve the overall performance of the device.
  • The TLC5510AINSR requires a specific power-up and power-down sequencing to ensure proper operation. The VCC pin should be powered up before the VIN pin, and the VIN pin should be powered down before the VCC pin. This sequencing helps prevent latch-up and ensures that the device starts up in a known state.
  • The TLC5510AINSR can drive a maximum capacitive load of 100 pF. Exceeding this limit can cause the device to oscillate or become unstable. If a larger capacitive load is required, an external buffer or amplifier may be needed.
  • To reduce noise and jitter in the TLC5510AINSR output, use a low-noise power supply, keep the input and output traces short and shielded, and use a good quality bypass capacitor (e.g. 10 uF ceramic capacitor) close to the VIN pin. Additionally, consider using a noise filter or a clock jitter cleaner in the output stage.
  • The TLC5510AINSR is rated for operation up to 125°C. However, the device's performance and accuracy may degrade at high temperatures. It's recommended to derate the device's specifications and consider using a heat sink or thermal management system to keep the device within its recommended operating temperature range.
