TLC5620CDR - Texas Instruments

Description: 8-Bit, 10 us Quad DAC, Serial Input, Pgrmable for 1x or 2x Output, Simultaneous Update, Low Power

Download TLC5620CDR Model

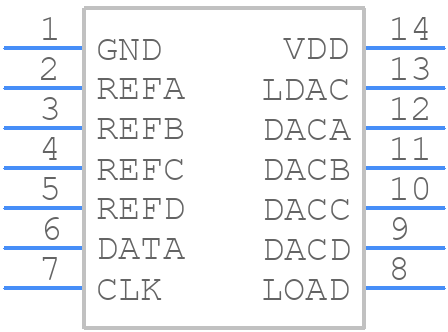

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC5620CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G**)
click to zoom
3D Models
TLC5620CDR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G**)
click to zoom

TLC5620CDR Details

  • Manufacturer Part Number:

    TLC5620CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    7 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.905 mm

TLC5620CDR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This sequence helps prevent unwanted voltage transients and ensures proper device operation.
  • To ensure accurate DAC output voltage levels, make sure to decouple the VREF pin with a 0.1uF capacitor to ground, and use a low-impedance voltage source for VREF. Additionally, ensure that the analog input signal is within the specified range and that the device is operated within the recommended temperature range.
  • The maximum clock frequency that can be used with the TLC5620CDR is 40 MHz. However, the actual clock frequency used may be limited by the specific application and the required settling time of the DAC output.
  • To enter power-down mode, assert the PD pin low. In power-down mode, the DAC output is high-impedance, and the device consumes minimal power. When exiting power-down mode, ensure that the PD pin is de-asserted before applying a new analog input signal.
  • The CLR pin is used to asynchronously clear the DAC output to zero. When the CLR pin is asserted low, the DAC output is immediately set to zero, regardless of the analog input signal. This feature is useful in applications where a rapid reset of the DAC output is required.
