The maximum power dissipation of the TLE2161ID is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits to prevent overheating.
To ensure stability in high-gain configurations, it's crucial to follow proper layout and compensation techniques. This includes using a low-ESR capacitor at the output, minimizing parasitic capacitance, and adding a compensation capacitor between the output and the inverting input. Additionally, consider using a resistor in series with the feedback capacitor to reduce the phase shift and improve stability.
The recommended input common-mode voltage range for the TLE2161ID is between VCC-1.5V and VCC+0.5V. Operating outside this range may result in reduced performance, increased distortion, or even oscillation. It's essential to ensure the input common-mode voltage is within the recommended range to maintain optimal performance.
While the TLE2161ID can be used as a comparator, it's not the most suitable choice. The TLE2161ID is an op-amp designed for linear applications, and its output stage is not optimized for high-speed switching. Texas Instruments recommends using a dedicated comparator, such as the TLV7031, for comparator applications.
The TLE2161ID has internal ESD protection diodes, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, or ESD bag to prevent static discharge. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2161ID Overview

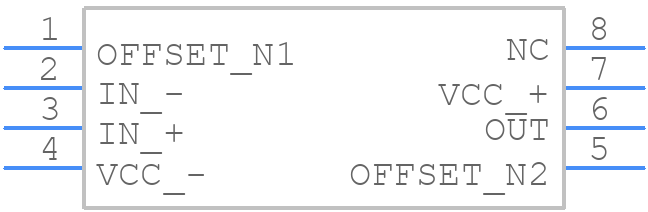

Use the download button to access the TLE2161ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE21,
or try a keyword search, such as Operational Amplifiers
