TLE2426CDRG4 - Texas Instruments

Description: V-Ref Adjustable 2V to 20V 20mA 8-Pin SOIC T/R

Download TLE2426CDRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

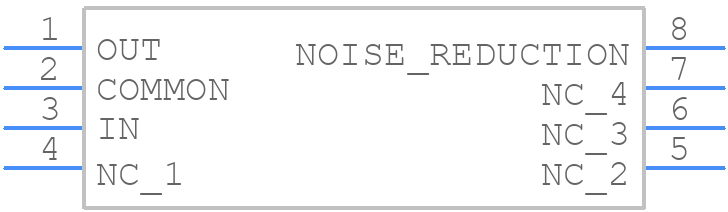

TLE2426CDRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLE2426CDRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLE2426CDRG4 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TLE2426CDRG4 Details

  • Manufacturer Part Number:

    TLE2426CDRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLE2426CDRG4 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TLE2426CDRG4 involves placing the device close to the voltage regulator output, using short traces, and minimizing the loop area to reduce noise and EMI. It's also recommended to place a 10uF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • To ensure the TLE2426CDRG4 is properly biased, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a low-impedance ground plane. Also, ensure that the input voltage is within the recommended operating range (2.7V to 10V) and that the output voltage is within the specified range (1.2V to 9.5V).
  • The TLE2426CDRG4 can handle a maximum current of 50mA. However, it's recommended to derate the current based on the ambient temperature and the device's thermal characteristics to ensure reliable operation.
  • The TLE2426CDRG4 has built-in input voltage transient protection and noise filtering capabilities. It can handle input voltage transients up to 18V and has a high power supply rejection ratio (PSRR) to minimize the impact of input voltage noise on the output voltage.
  • The TLE2426CDRG4 is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics and ensure that the junction temperature (TJ) does not exceed 150°C to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE2426CDRG4 Overview

Use the download button to access the TLE2426CDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE24, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
