The recommended layout and placement for the TLE2426IDG4 involves placing the device close to the power supply pins, using short traces, and avoiding vias under the device to minimize noise and ensure proper operation. A good layout practice is to use a solid ground plane and to keep the input and output traces separate to minimize crosstalk.
To handle high-frequency noise generated by the TLE2426IDG4, use a low-pass filter or a ferrite bead in series with the output to filter out high-frequency noise. Additionally, use a decoupling capacitor close to the device to reduce noise and ensure stable operation.
The maximum operating temperature range for the TLE2426IDG4 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the TLE2426IDG4 is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, which is a standard for automotive-grade ICs. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the TLE2426IDG4, start by checking the power supply voltage, input, and output connections. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2426IDG4 Overview

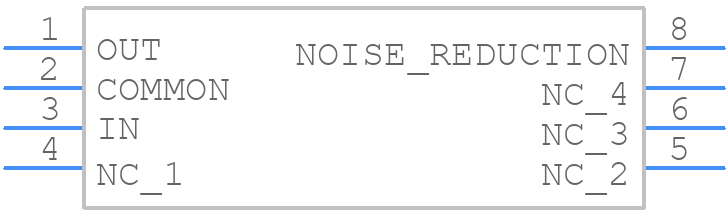

Use the download button to access the TLE2426IDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE24,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
