Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for high-frequency circuit design, such as keeping the input and output traces short and away from each other, and using a solid ground plane to reduce noise and EMI.
To ensure proper biasing, make sure to follow the recommended voltage and current settings in the datasheet. Additionally, use a stable voltage source and decouple the input and output pins with capacitors to reduce noise and oscillations.
The TLE2426IDRG4 has an operating temperature range of -40°C to 125°C, but it's essential to consider the thermal design of the system to ensure the device stays within its recommended operating temperature range.
To troubleshoot issues, start by checking the input and output voltages, currents, and waveforms using an oscilloscope. Verify that the device is properly biased and that the input and output pins are not overloaded. Consult the datasheet and application notes for guidance on troubleshooting common issues.
The TLE2426IDRG4 is a general-purpose device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. Consult with Texas Instruments and relevant industry standards (e.g., IEC 61508, ISO 26262) to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2426IDRG4 Overview

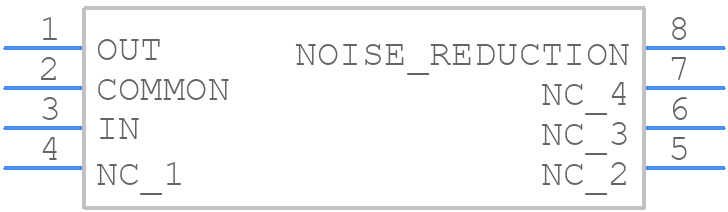

Use the download button to access the TLE2426IDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE24,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
