A good PCB layout for TLK105RHBR involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermal interface material, and follow the recommended operating conditions and thermal design guidelines provided in the datasheet.
To mitigate EMI and RFI, use shielding, keep signal traces short, avoid routing signals near the clock and data lines, and use a common-mode choke or ferrite bead on the clock line. Additionally, follow the recommended layout and grounding guidelines.
To troubleshoot issues with TLK105RHBR, use a logic analyzer or oscilloscope to capture waveforms, check the signal integrity, and verify the clock and data signal quality. Also, review the system design and ensure compliance with the datasheet recommendations.
When using TLK105RHBR in a system with multiple voltage domains, ensure proper voltage translation and level shifting, and follow the recommended voltage sequencing and power-up procedures to avoid damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLK105RHBR Overview

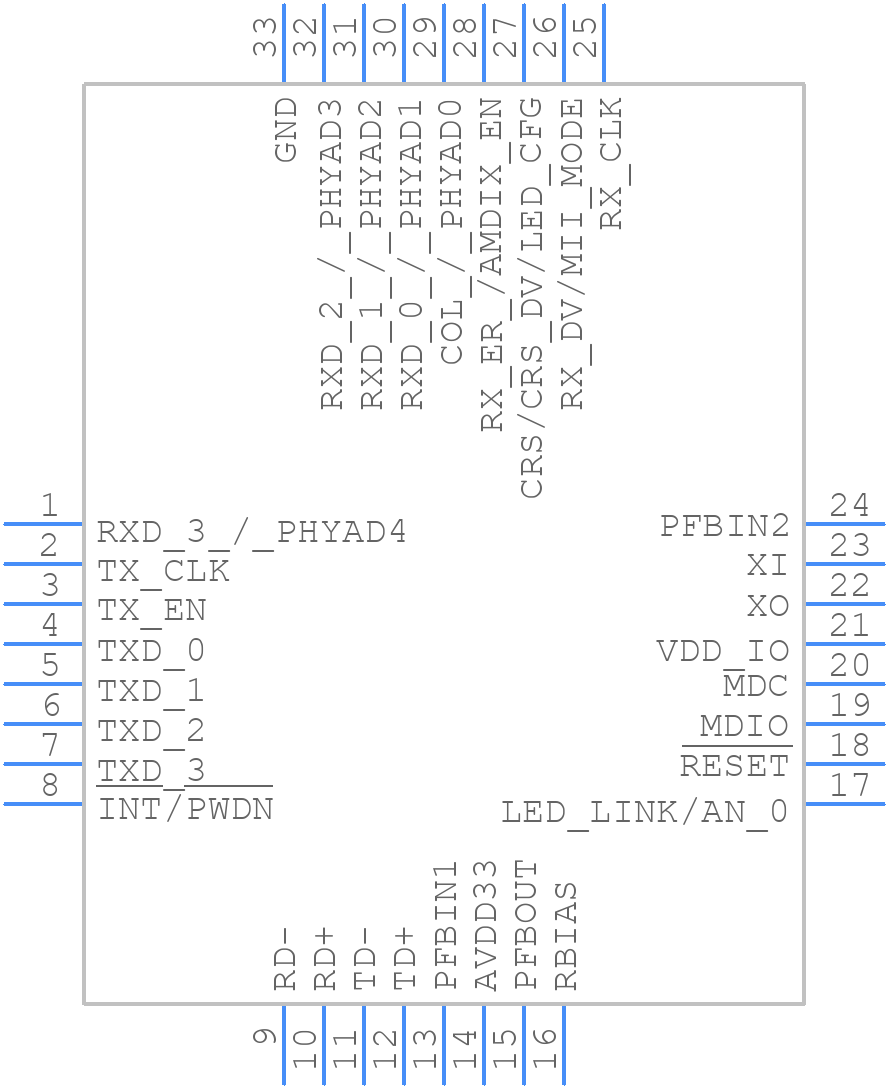

Use the download button to access the TLK105RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK10,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
