TLK106LRHBR - Texas Instruments

Description: PHY 1-CH 10Mbps/100Mbps 32-Pin VQFN EP T/R

Download TLK106LRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

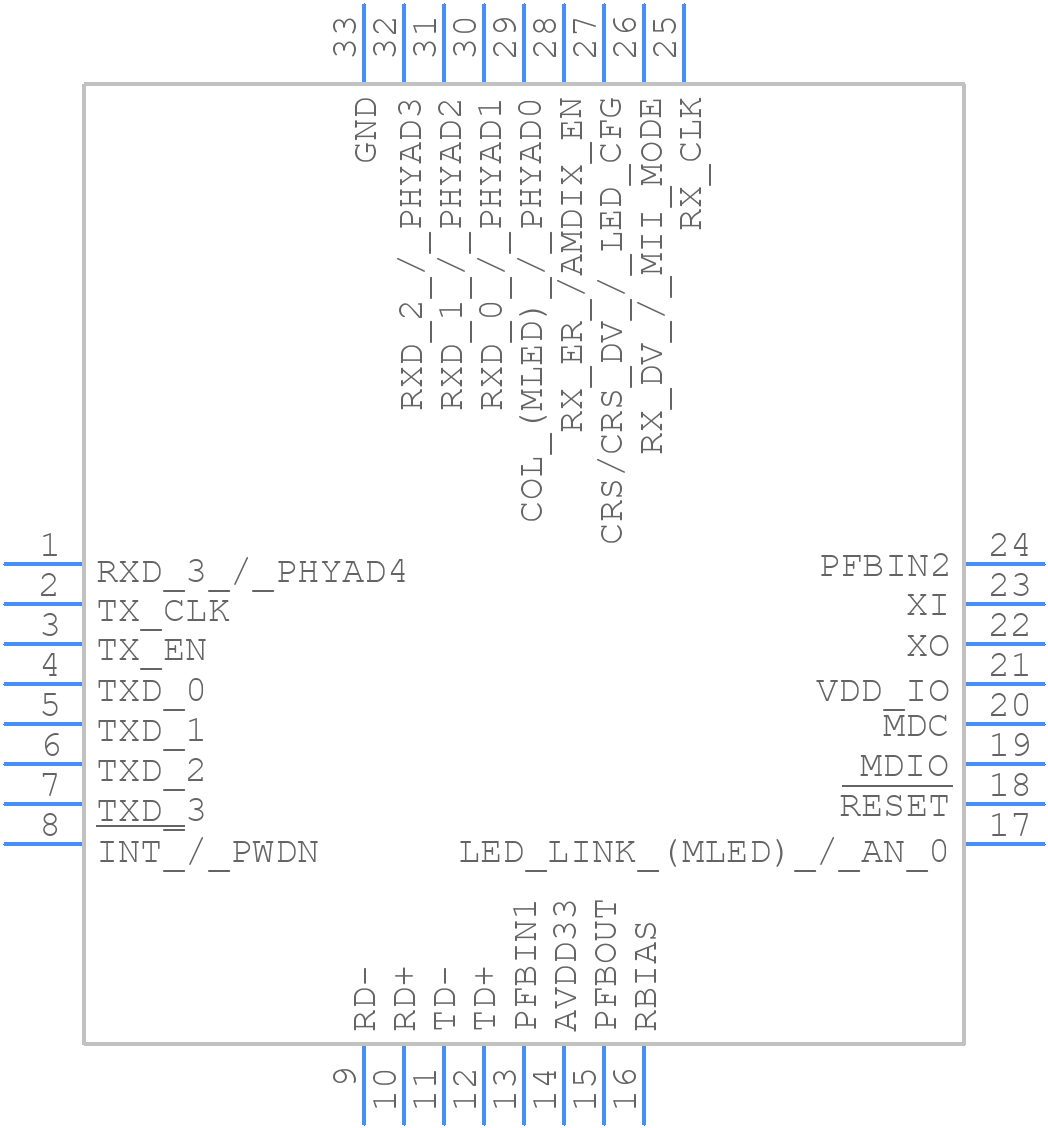

TLK106LRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLK106LRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032B
click to zoom
3D Models
TLK106LRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032B
click to zoom

TLK106LRHBR Details

  • Manufacturer Part Number:

    TLK106LRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

TLK106LRHBR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum cable length depends on the specific application and signal frequency. As a general guideline, the TLK106LRHBR supports cable lengths up to 100 meters at 1 Gbps and 50 meters at 10 Gbps.
  • Yes, the TLK106LRHBR supports redundant and redundant-with-failover configurations. However, additional external circuitry and control logic may be required to implement these configurations.
  • Use a combination of tools, including oscilloscopes, signal generators, and protocol analyzers, to troubleshoot issues. Also, consult the TLK106LRHBR datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLK106LRHBR Overview

Use the download button to access the TLK106LRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK10, or try a keyword search, such as Network Interfaces
