TLK2521IPAP - Texas Instruments

Description: Enhanced Package (PowerPAD)  2.5-V Power Supply for Low Pow

Download TLK2521IPAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLK2521IPAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

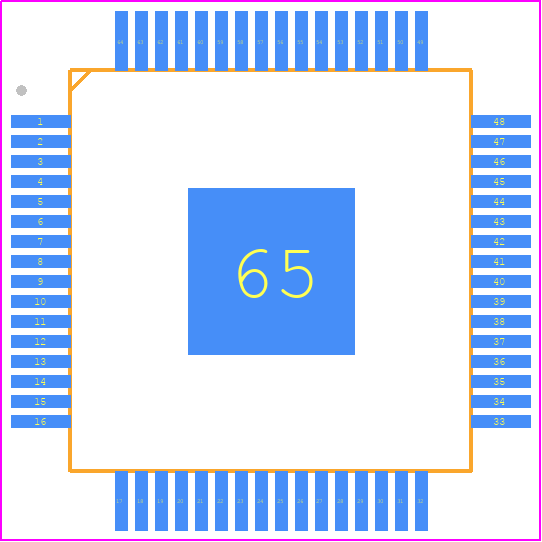

TLK2521IPAP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PAP (S-PQFP-64)-
click to zoom
3D Models
TLK2521IPAP - Texas Instruments - 3D model - Quad Flat Packages - PAP (S-PQFP-64)-
click to zoom

TLK2521IPAP Details

  • Manufacturer Part Number:

    TLK2521IPAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-64

  • Pin Count:

    64

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

TLK2521IPAP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a thermal pad or a heat sink to dissipate heat, and ensure good airflow around the device. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
  • Use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or chokes on the input and output lines. Also, ensure good grounding and decoupling of the device.
  • Check the clock signal, ensure proper termination, and verify the transmit and receive enable signals. Also, use a logic analyzer or oscilloscope to debug the signal lines and verify the data transmission.
  • Operating the device outside the recommended voltage range may affect its performance, reliability, and lifespan. Ensure the supply voltage is within the specified range to guarantee optimal operation.
