- Part Number TLK2701IRCP
- Manufacturer Texas Instruments
- Pin Count 65
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P1200X1200X100-64N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLK2701IRCP Details
-
Manufacturer Part Number:
TLK2701IRCP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFP
-
Package Description:
GREEN, MS-026, PLASTIC, HVQFP-64
-
Pin Count:
64
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
TLK2701IRCP Frequently Asked Questions (FAQs)
-
The TLK2701IRCP supports cable lengths up to 100 meters (328 feet) at 100 Mbps, and up to 50 meters (164 feet) at 1000 Mbps.
-
To ensure reliable operation, it's essential to follow proper thermal design and layout guidelines, including providing adequate heat sinking and airflow. The device is rated for operation up to 85°C (185°F).
-
The TLK2701IRCP has a typical power consumption of 350 mW. To reduce power consumption, consider using the device's low-power mode, disabling unused features, and optimizing the system's power management.
-
To troubleshoot issues, start by verifying the physical connection, checking the device's configuration and settings, and using diagnostic tools such as loopback tests and packet sniffers. Consult the datasheet and application notes for more information.
-
While the TLK2701IRCP supports standard Ethernet cable lengths and types, using non-standard cables or lengths may affect performance and reliability. It's recommended to use standard Category 5e or higher cables for optimal results.
Trust Checks
System Verified
TLK2701IRCP Overview

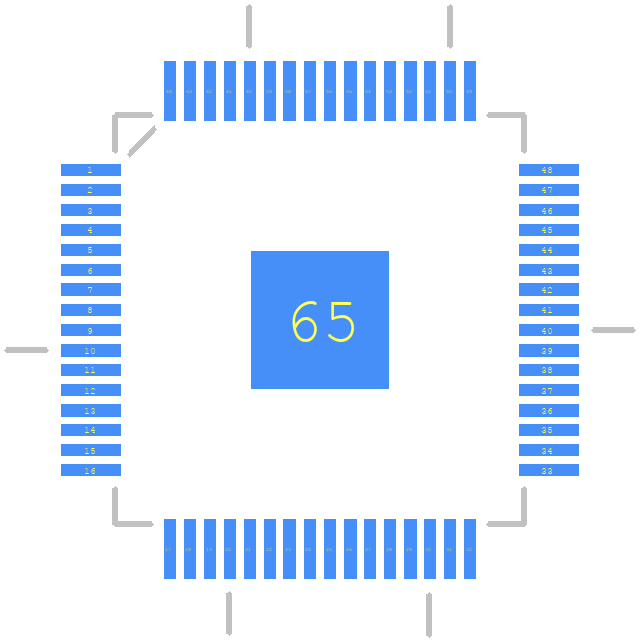

Use the download button to access the TLK2701IRCP schematic symbol and PCB footprint.
