Texas Instruments provides a recommended PCB layout in the TLK3132ZEN datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias near the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation in high-temperature environments, it's crucial to follow proper thermal design and management practices. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the TLK3132ZEN has a built-in thermal protection feature that will shut down the device if it exceeds the maximum junction temperature (TJ) of 150°C.
When selecting capacitors for the TLK3132ZEN's power supply, it's essential to consider the capacitor's equivalent series resistance (ESR), voltage rating, and capacitance value. A low ESR is critical to minimize voltage ripple and ensure stable operation. Texas Instruments recommends using ceramic or film capacitors with a voltage rating of at least 2x the input voltage and a capacitance value of 10uF to 22uF.
To troubleshoot issues with the TLK3132ZEN's clock signal, start by verifying the clock signal's frequency, amplitude, and jitter using an oscilloscope. Check the clock signal's routing and termination on the PCB to ensure it's properly matched and terminated. Additionally, verify that the clock signal is within the specified frequency range and that the device is properly configured for the selected clock mode.
When using the TLK3132ZEN in a system with multiple voltage domains, it's essential to ensure that the device's power supply is properly isolated and decoupled from other voltage domains. This can be achieved using voltage regulators, filters, and decoupling capacitors. Additionally, consider the device's voltage tolerance and ensure that it's operated within the specified voltage range to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLK3132ZEN Overview

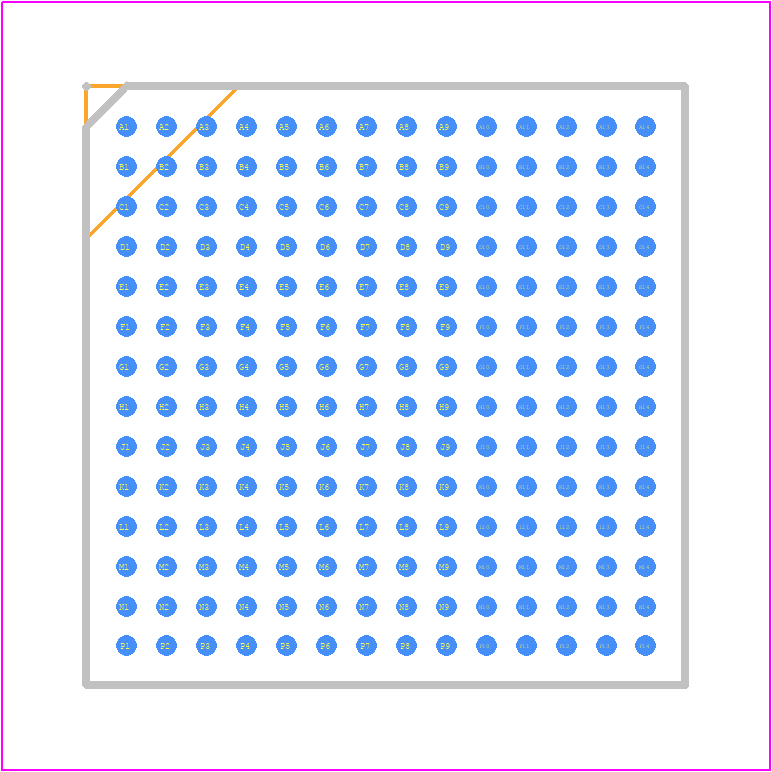

Use the download button to access the TLK3132ZEN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK31,
or try a keyword search, such as Line Driver or Receivers
