TLP184(TPR,SE footprint, schematic symbol and 3D model by Toshiba

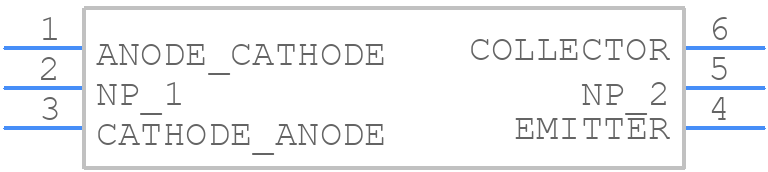

Symbol

PCB Footprints

3D Models

TLP184(TPR,SE Details

The TLP184 can operate in a temperature range of -40°C to 100°C.
Yes, the TLP184 has a high-speed switching time of 10 μs (typical) and a bandwidth of 10 kHz (typical), making it suitable for high-speed applications.
The minimum creepage distance required for the TLP184 is 4.5 mm, which is the distance between the input and output pins.
Yes, the TLP184 can withstand high voltages up to 5000 Vrms (AC) and 7000 Vdc (DC) between the input and output pins.
Yes, the TLP184 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
