TLP2105(F) - Toshiba

Description: Toshiba TLP2105(F) DC Input Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SOIC

Download TLP2105(F) Model

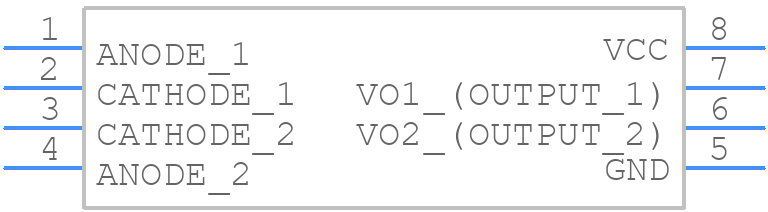

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP2105(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5K1S
click to zoom
3D Models
TLP2105(F) - Toshiba  - 3D model - Small Outline Packages - 11-5K1S
click to zoom

TLP2105(F) Details

  • Manufacturer Part Number:

    TLP2105(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    1

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    2.5e-7 s

  • Response Time-Nom:

    1.5e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    YES

TLP2105(F) Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output traces as short as possible, and to use a ground plane to reduce EMI. Additionally, it is recommended to place a 0.1uF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • To ensure reliability in high-temperature applications, it is recommended to follow the recommended operating temperature range of -40°C to 125°C, and to use a heat sink or thermal pad to dissipate heat. Additionally, it is recommended to derate the device's power dissipation according to the ambient temperature.
  • The maximum allowable voltage on the input pins of the TLP2105(F) is 5.5V, which is the absolute maximum rating. Exceeding this voltage may cause damage to the device.
  • Yes, the TLP2105(F) can be used in a switching power supply application, but it is recommended to follow the recommended operating conditions and to ensure that the device is properly heat-sinked to prevent overheating.
  • To troubleshoot issues with the TLP2105(F), it is recommended to check the input and output voltages, and to verify that the device is properly powered and configured. Additionally, it is recommended to check for any signs of overheating, such as excessive temperature or thermal shutdown.
