TLV0838CPW - Texas Instruments

Description: Texas Instruments TLV0838CPW, 8-bit Serial ADC Differential Input, 20-Pin TSSOP

Download TLV0838CPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

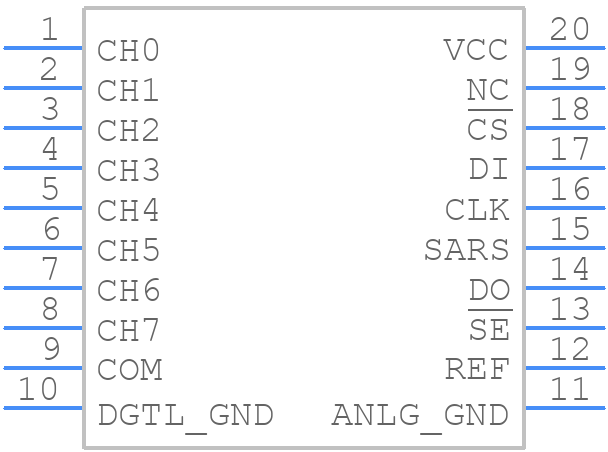

TLV0838CPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV0838CPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
TLV0838CPW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

TLV0838CPW Details

  • Manufacturer Part Number:

    TLV0838CPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.031 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV0838CPW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the TLV0838CPW close to the analog signal sources to minimize noise. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • The TLV0838CPW has a built-in POR and BOR circuitry. To handle these, ensure that the power supply ramps up slowly (typically 1-2 ms) and that the voltage reaches the minimum operating voltage (VDD) before the device starts operating. Also, consider adding external circuitry to detect and respond to power failures.
  • The recommended input impedance for the analog inputs is 1 kΩ to 10 kΩ. This ensures that the input signal is not attenuated and that the ADC can accurately sample the signal.
