TLV1544CDR - Texas Instruments

Description: Analog to Digital Converters - ADC 10-Bit 85 kSPS Serial Out

Download TLV1544CDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

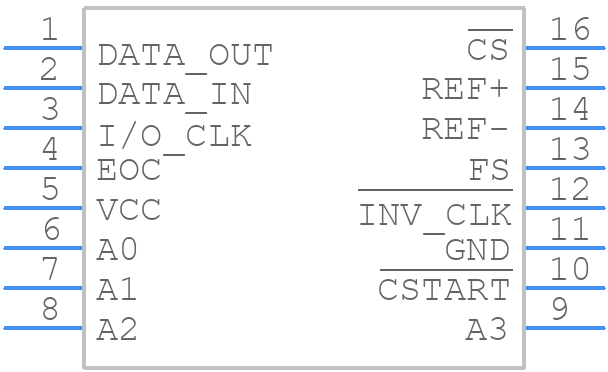

TLV1544CDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV1544CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
TLV1544CDR - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

TLV1544CDR Details

  • Manufacturer Part Number:

    TLV1544CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.085 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLV1544CDR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
  • The POR and BOR features of the TLV1544CDR can be handled by connecting the POR pin to a capacitor and a pull-up resistor to VCC. The capacitor should be chosen to ensure that the POR pin is held low for at least 1ms after power-on. The BOR threshold can be adjusted by connecting a resistor divider network to the BOR pin.
  • The recommended clock frequency for the TLV1544CDR is between 1.5MHz and 4MHz. A crystal oscillator or a high-quality clock source is recommended to ensure accurate conversions. The clock source should be connected to the CLKIN pin, and the clock frequency should be chosen based on the desired conversion rate and system requirements.
  • The TLV1544CDR has a built-in calibration feature that can be initiated by writing to the calibration register. The device should be calibrated after power-on and after any changes to the reference voltage or clock frequency. The calibration process involves a self-test and adjustment of the internal bias voltages and currents to ensure optimal performance.
  • The recommended reference voltage for the TLV1544CDR is between 2.5V and 5V. The reference voltage should be connected to the REF pin, and a bypass capacitor should be connected between the REF pin and the analog ground plane to filter out noise. The reference voltage should be chosen based on the desired conversion range and system requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV1544CDR Overview

Use the download button to access the TLV1544CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
