To minimize noise and ensure optimal performance, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the input and output traces short and away from digital signals, and use a low-ESR capacitor for decoupling.
Choose external components based on the specific application requirements, such as frequency range, signal amplitude, and power supply voltage. For capacitors, consider the capacitance value, voltage rating, and ESR. For resistors, consider the resistance value, power rating, and tolerance. Consult the datasheet and application notes for guidance.
The TLV1544CPW has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Consult the datasheet for thermal resistance and power dissipation information.
To troubleshoot common issues, start by verifying the power supply voltage, decoupling, and grounding. Check for oscillations or instability by monitoring the output signal with an oscilloscope. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
To ensure EMI and EMC compliance, follow proper PCB layout and routing practices, use shielding and filtering as needed, and consider using a common-mode choke or ferrite bead. Consult the datasheet and regulatory standards (e.g., CISPR, FCC) for guidance on EMI and EMC testing and compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1544CPW Overview

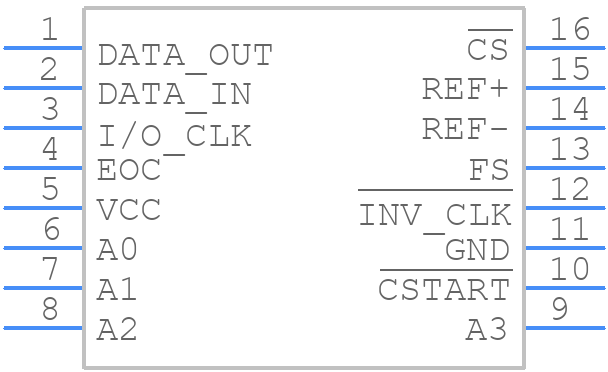

Use the download button to access the TLV1544CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
