It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Monitor the power supply voltage to ensure it is within the recommended range of 2.7V to 5.5V. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C. Use thermal management techniques such as heat sinks or thermal interfaces to prevent overheating.
Common pitfalls include not following proper layout and routing guidelines, not providing adequate decoupling, and not considering the impact of parasitic capacitance. To troubleshoot issues, use tools such as oscilloscopes and logic analyzers to identify the source of the problem, and consult the datasheet and application notes for guidance.
Optimize performance by selecting the appropriate gain and bandwidth settings, using proper filtering and shielding, and minimizing noise and interference. Considerations such as signal amplitude, frequency, and impedance should be taken into account when designing with the TLV1544CPWR.
Alternatives to the TLV1544CPWR include the TLV246x and OPA344 series from Texas Instruments. These devices offer similar performance and features, but with some differences in gain-bandwidth product, noise, and power consumption. Compare datasheets and application notes to determine the best fit for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1544CPWR Overview

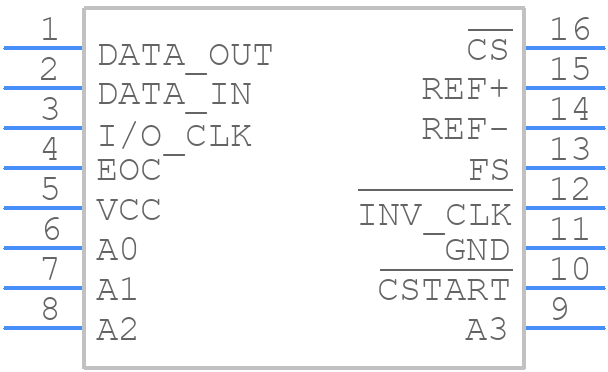

Use the download button to access the TLV1544CPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
