Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the ADC should be placed close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC power pins.
The TLV1549IDG4 does not require calibration, as it has an internal calibration circuit that is performed during power-up. However, it is recommended to perform a system-level calibration to account for any external component tolerances and PCB layout effects.
The TLV1549IDG4 has a maximum sampling rate of 1.5 MSPS (million samples per second), but this can be limited by the system's clock frequency, analog input bandwidth, and digital interface speed.
Yes, the TLV1549IDG4 can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple analog input channels. However, this may require additional external components and careful system design to ensure accurate readings.
The TLV1549IDG4 has internal overvoltage protection on the analog input pins, but it is still recommended to use external protection circuitry, such as clamping diodes or voltage-limiting resistors, to prevent damage from excessive voltage levels.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1549IDG4 Overview

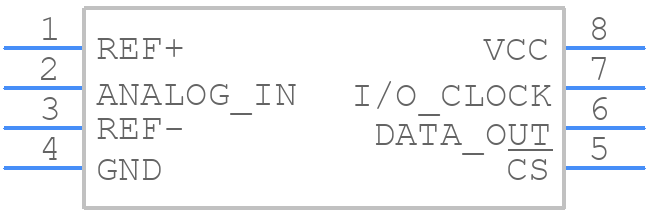

Use the download button to access the TLV1549IDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
