TLV1549IDR - Texas Instruments

Description: IC ADC 10BIT SER 38K 8SOIC

Download TLV1549IDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

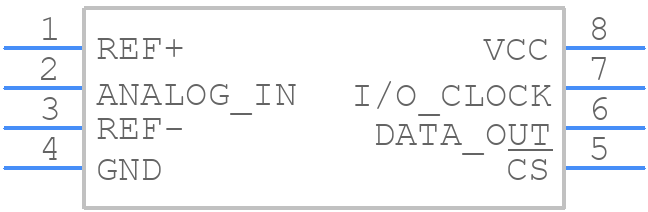

TLV1549IDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV1549IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - +soic d--8
click to zoom
3D Models
TLV1549IDR - Texas Instruments - 3D model - Small Outline Packages - +soic d--8
click to zoom

TLV1549IDR Details

  • Manufacturer Part Number:

    TLV1549IDR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, SOIC-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    21 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TLV1549IDR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, use short traces, avoid vias, and keep the input and output traces away from each other to minimize noise and crosstalk.
  • The TLV1549IDR has a built-in POR and BOR circuitry. To handle these, ensure a clean power-up sequence, use a capacitor on the VCC pin to filter out noise, and consider adding an external reset circuit if your system requires a specific reset behavior.
  • The TLV1549IDR can sample up to 40 kHz. However, the maximum sampling rate depends on the clock frequency and the conversion mode. Higher sampling rates increase power consumption, so it's essential to balance sampling rate and power consumption based on your application's requirements.
  • Calibration involves adjusting the internal offset and gain to match your specific application. You can use the built-in self-calibration feature or perform an external calibration using an accurate voltage reference. Consult the datasheet and application notes for detailed calibration procedures.
  • Choose components with low tolerance, high stability, and suitable temperature coefficients. Ensure the capacitors have a low equivalent series resistance (ESR) and are suitable for the operating frequency. Consult the datasheet and application notes for specific component recommendations.
