It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Choose input capacitors with low ESR and high frequency response. For output capacitors, choose ones with low ESR and high capacitance. The datasheet recommends 1uF to 10uF for input and output capacitors, but the optimal value depends on the specific application and frequency range.
The maximum power dissipation of the TLV1570CPW is dependent on the package type and thermal resistance. The datasheet provides a calculation for power dissipation based on the maximum junction temperature, thermal resistance, and ambient temperature. Use the formula: Pd = (Tj - Ta) / θja, where Pd is the power dissipation, Tj is the maximum junction temperature, Ta is the ambient temperature, and θja is the thermal resistance.
To ensure stability, follow the recommended layout and routing guidelines, use a stable input voltage, and decouple the power supply with a capacitor. Additionally, ensure the output is properly terminated, and the feedback network is properly designed to avoid oscillation.
The recommended input voltage range for the TLV1570CPW is 2.7V to 5.5V. The output voltage range is dependent on the input voltage and the gain setting. The datasheet provides a graph showing the output voltage range vs. input voltage for different gain settings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV1570CPW Overview

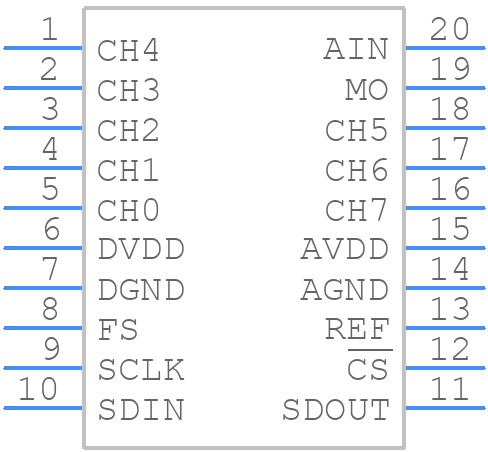

Use the download button to access the TLV1570CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV15,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
